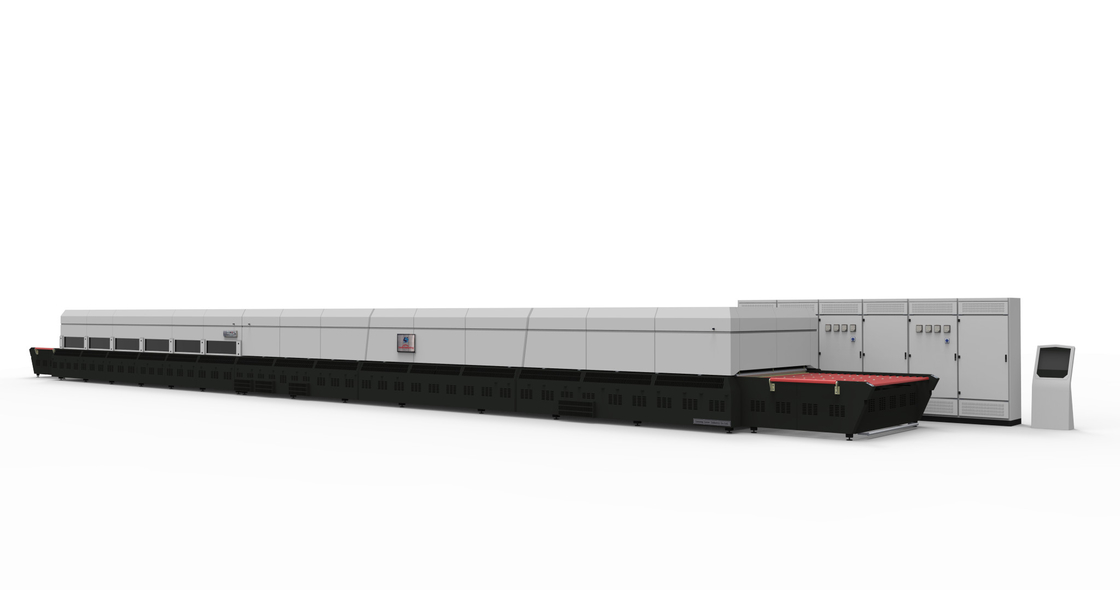

Customized LV-CTF Series Continuous Flat Glass Tempering Furnace
Main purpose:
This Continuous Furnace is mainly Used to the produce glass for photovoltaic, Household appliances, etc for High Production outpur and High Quality.
Main technical features:
1. Real continuous glass tempering line with lowest energy consumption.
2. Ascending temperature setting in the furnace insures even heating and avoid heat-shock break of glass.
3. Powerful production capacity ,several times than that of the traditional radiation furnace.
Type Glass Size Productivity Take 3.2mm solar glass) Energy Consumption Length Of Furnace
Max. Size Thickness
LV-CTF1222-15 1200X2200 3-5 260m2/h >=2.5-2.8KWh/m2 15
LV-CTF1222-20 1200X2200 3-5 350m2/h 20
LV-CTF1222-24 1200X2200 3-6 410m2/h 24
LV-CTF1222-30 1200X2200 3-8 500m2/h 30
LV-CTF1222-32 1200X2200 3-10 530m2/h 32
LV-CTF1222-36 1200X2200 3-10 560m2/h 36
LV-CTF1722-20 1700X2200 3-5 550m2/h 20
LV-CTF1722-24 1700X2200 3-6 650m2/h 24
LV-CTF1722-30 1700X2200 3-8 750m2/h 30
LV-CTF1722-36 1700X2200 3-10 900m2/h 36
Note: The above type are the normal ones, we can design the machine according to your special requirements.
