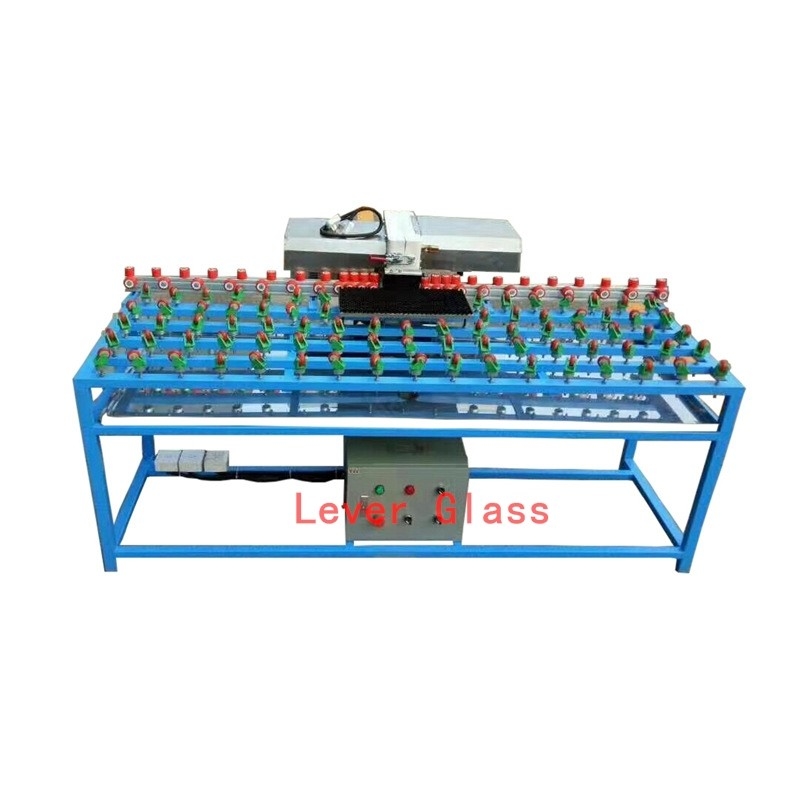

Rapid Glass Edge grinding and chamfering machine,
mainframe and table with split structure, can be used in tempered glass, insulating glass, glass and other fast chamfering.
1. Workbench is mainly equipped with water tank, electric control box.
2. Independent mainframe has a structural unique advantages, different from the many drawbacks of traditional products.
2.1. The precision sealing structure of the grinding wheel seat, well protected bearings damaged due to water damage.
2.2. Waterproof superior performance, water circulation system does not affect the opening and closing of the box to facilitate the replacement of grinding wheels and machine maintenance in the future.
2.3. Drive system rationality, extend machine life. Exposed drive system, a very good protection of the power of the heart (motor) and various components.
Features: easy maintenance, ventilation and cooling, moisture leakproof, anti-glass powder corrosion and so on
| OEM | YES | Brand | Lever | Model | LV-X |
| Power | 2.4 kw | Weight | 400 kgs | Min. glass size | 250mm*250mm |
| Thickness | 3-25mm | input speed | 0.8-15(m/min) | outer dimension | 3200*1300*1200mm |
| Machine type | Glass Grinding machine | glass type | all kinds of glass |
