Straight Line Glass Mitering Machines / Glass Multiple Angle Edging machine

China Straight Line Glass Mitering Machines / Glass Multiple Angle Edging machine supplier
Straight Line Glass Mitering Machines / Glass Multiple Angle Edging machine supplier Straight Line Glass Mitering Machines / Glass Multiple Angle Edging machine supplier

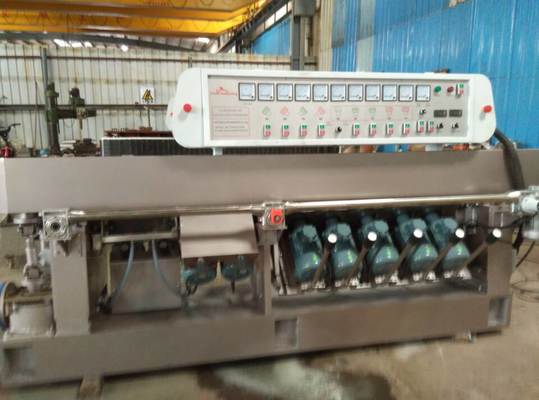

Large Image :  Straight Line Glass Mitering Machines / Glass Multiple Angle Edging machine

Product Details:

Place of Origin: China
Brand Name: LEVER
Certification: CE
Model Number: LV-SLE9325-45°

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD1.00
Delivery Time: 45 DAYS
Payment Terms: T/T
Minimum Order Quantity: 1SET
Contact Now
Detailed Product Description
Usage: Glass Edging/ Polishing Spindles: 9 Motors
High Light:

Glass Edging machine

,

Glass Mitering Machine

,

Glass Beveling Machine

Glass Straight line Multilevel edging machine (9 motors)

  • Manual+digital display(angle, thickness)

1. Machine Application

This kind of machine is suitable for grinding the straight line edge and 45°corner angle on the flat glass with different size and thickness.



2. Feature:

2.1. The angle can be adjusted between 0°- 45°.

2.2. The feeding speed and depth could be adjusted in processing.

2.3. The processed glass thickness can be changed by adjusting the front guide rail’s position.

2.4. The front angle’s parameter can be set precisely in processing.

2.5. Basement and frame are made of cast iron to ensure stability and solidity.

2.6. The machine equipped a manual lubrication pump for conveyor lubrication.



3. Technical Specification



LV-SLE9325-45°(9 motors)

Min. glass size

100×100mm

Max. glass size

3000×3000mm

Working speed

500mm-3000mm/min

Glass thickness

3mm-25mm

Bevel edge angle

0°-45°

Total power

19.2kw

Base Dimension

6600×1250×2200mm

Total weight

3000㎏

Volt/HZ

3P,380V,50HZ

Straight Line Glass Mitering Machines / Glass Multiple Angle Edging machine
