Automatic CNC Glass Cutting Machine line

China Automatic CNC Glass Cutting Machine line supplier

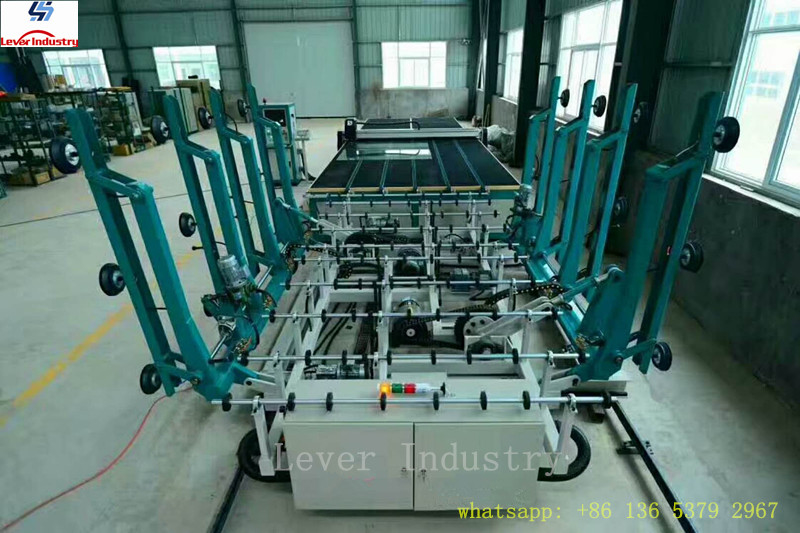

Large Image :  Automatic CNC Glass Cutting Machine line

Product Details:

Place of Origin: China
Brand Name: Lever
Certification: CE
Model Number: LV-CML series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: seaworthy
Delivery Time: 50 days
Payment Terms: T/T, or L/C
Supply Ability: 20SETS
Contact Now
Detailed Product Description
Machine Type: Glass Cutting Machine CNC: GLASS CUTTING
Automatic: Glass Cutting Line Cutting Glass: Breaking Glass
Max Glass Size: 3700 X 2500mm Max Glass Siez: 6100 X 3300mm


The line mainly contains three sections:

  • 3725 Automatic Glass Loading Table
  • 3725 CNC Automatic Shaped Glass Cutting Machine
  • 3725 Glass Air-float Breaking Table


The purpose of the shaped glass cutting machine:

CNC shaped glass cutting machine is mainly used in cars, trains, ships, construction, household appliances, furniture, decoration and other industries. Automatic glass cutting process is characterized by large volume, high quality, strict requirements of size and good interchangeability. If it is taken by manual cutting, the glass size will be dispersion, and by milling to ensure the glass size will result in human waste, and greater equipment wear and tear. However, CNC shaped glass cutting machine can control the glass sheet, utilize the human resources and reduce the equipment wear.

Size will not be required for architectural glass so seriously, but each program is with different shapes, especially the irregular shapes, such as arches, fan-shaped, round, round arc, ellipse and so on. If adopts manual process , the template must be prepared in advance, however, it will cause low efficiency and low repeat utilization of the template, even waste more. The shaped glass cutting machine improves the productivity, reduces cost without the template.

Therefore, the application of CNC shaped glass cutting machine is the inevitable trend during the production of safety glass.


CNC cutting machine specification:Automatic CNC Glass Cutting Machine line



Overall dimension(L*W*H)

4800 X 3250 ×1460(mm)

Max.glass size

3700 x 2500mm

Glass Thickness


Max. speed

160 m/min

Cutting Accuracy

± 0.2  mm



Automatic CNC Glass Cutting Machine line
