Product Details:
Payment & Shipping Terms:
|
| Product Name: | Resin Wheel For Glass Beveling Machine | Size:: | 150*15*10*B12/22/50mm |
|---|---|---|---|
| Diameter: | 130mm，150mm | Center Hole Dia: | 12mm，22mm, 50mm |
We use high-quality diamond powder as the raw material. Precise dimensions, good sharpness, high efficiency, and long working life.
Our glass wheels include full segmented, internal and external segmented, continuous grinding wheels, trapezoidal grinding wheel, 45°degree shape grinding wheel, bowl shape and OG shape grinding wheels, also various other customized shapes and sizes. Normally used for grinding architectural glass, bathroom glass, car glass, etc.
According to the straight line machine, double edging machine, shape edging machine different glass grinding machines, the grinding wheels series is different.
Specifications

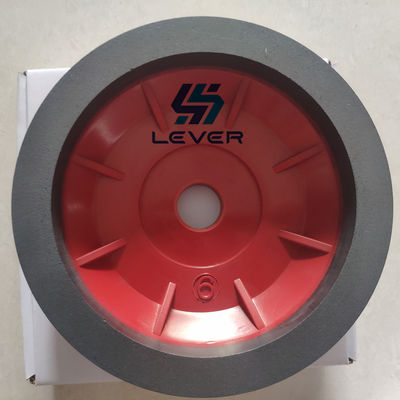

Fine beveling machine resin wheel
Specification and model: Φ150*15*10 (Hole size: 12 / 22 /50 holes)
Applicable machine: beveling machine.
Product material: high quality diamond and resin binder
Product introduction: It is used for grinding bevel surface on the beveling machine. It is made of high-quality diamond and resin binder. The grinding wheel has high sharpness, strong cutting force and obvious mark removal effect. Commonly used in 4 #, 5 #, 6 #, 7 #.
*Size: 150*15*10*B12/22/50
*Function: for BAVELLONI, for SCHIATTI bevelling machine
*Quality: Quick scratch removal, long life
*Material: Resin bond, diamond
Brief Introduction
1. Lever resin bonded cup diamond grinding wheel
2. Adopt new high quality resin bond and diamond material
3. Quick lines/marks removal
4. Fine glass grinding
5. Suitable for both Chinese beveling machines and Italian beveling machines
Description of products
| Keywords of items | Specifications | Package |
| Resin bonded diamond grinding wheel |
Size: 150*15*10*B12/22/50 Material: Resin bond, diamond
|
Packing: Carton 33*33*25mm 5pcs, 5Kgs |
| Resin bonded bevelling diamond wheel |
Specifications
| RESIN BOND DIAMOND GRINDING WHEEL(BOWL WHEEL) | ||||
| D (mm) | W (mm) | T (mm) | H (mm) | Grits(#) |
| 150 | 15 | 10 | 12/22/50 | 240/320/400/500/700 |
