Continuous Tempering Furnace for Solar Glass

China Continuous Tempering Furnace for Solar Glass supplier

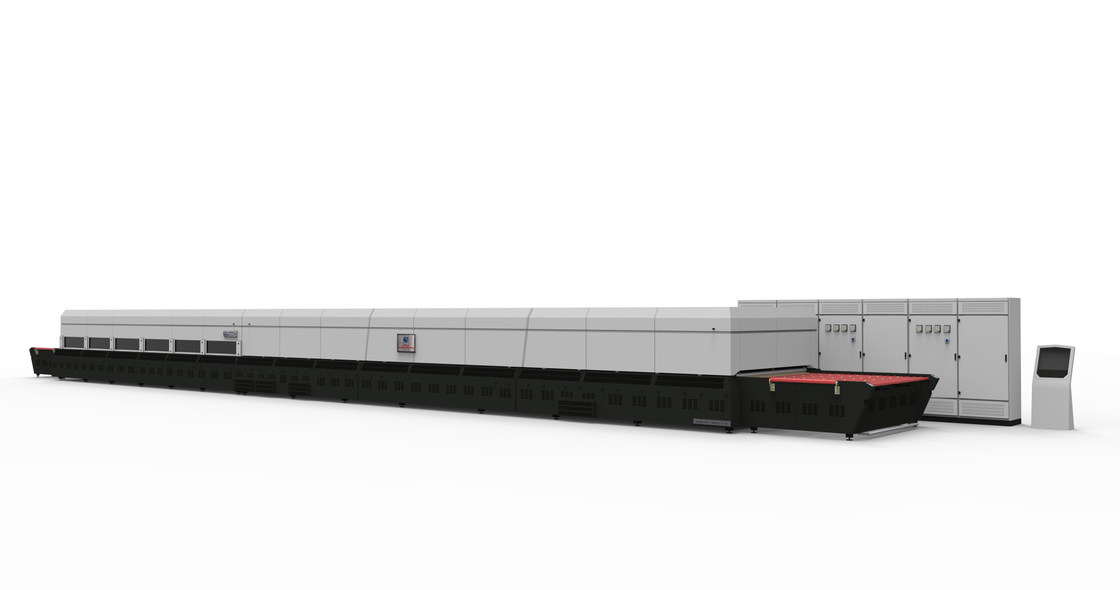

Large Image :  Continuous Tempering Furnace for Solar Glass

Product Details:

Place of Origin: China
Brand Name: Lever
Certification: CE
Model Number: LV-CTF

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: seaworthy
Delivery Time: 120DAYS
Payment Terms: T/T, or L/C
Supply Ability: 10SETS
Minimum Order Quantity: 1SET
Contact Now
Detailed Product Description
Glass Toughened Furnace: Glass Toughening Machine Glass Tempering Furnace: Glass Tempered Machine
Glass Oven: Glass Strenghened Furnace Automotive Glass Machine: Safety Glass Processing Machine
Solar Glass: Solar Glass Furnace Application: Solar Glass
Max. Glass Size: 1300 X 2400mm Min. Glass Size: 150 X 280mm
Glass Thickness: 3-5mm

LV-CTF Series Continuous Flat Glass Tempering Furnace for Solar Glass


1. Machine Application

LV-CTF-1224-16 Continuous flat glass tempering furnace is a special plant used to produce the solar tempered glass for high quality & high flatness requirements, which has reliable technology process and high efficiency, can process tempered glass with very good optical performance.


2. Supply Scope:

  • Loading table
  • Heating section
  • High pressure cooling section
  • Medium pressure cooling section
  • Cooling section
  • Unloading table
  • Blower system
  • Electrical & control system
  • Spare parts as listed in appendix
  • Technical documents


3. Technical Specifications:

  • Basic parameters
Name Specification Remark

Max. glass size

(Or Loading Area)

1300 x 2400mm
Min. glass size 150 x 280mm
Thickness 3--5 mm
Length of heating section(total) About 16000mm
Flatness ≦0.20%
Productivity 290sq.meter/1 hour (Calculated on 3.2mm)
Quality Standards (For glass) ANSIZ-97.1 EN12150-2008, ECER 43
Finished product rate More than 96%
Power sumption ≤2.8kwh/m2 (Calculated on 3.2mm ultrawhite glass)

Note: The above type are the normal ones, we can design the machine according to your special requirements.


Continuous Tempering Furnace for Solar Glass

Lever Industry Co have more than 19 years of experience in the Glass Processing Industry. We are Unremitting, Just for Customer Satisfication!
