| INSULATING GLASS: | DOUBLE GLAZING GLASS | DGU LINE: | INSULATING GLASS MACHINE |
|---|
Double Glazing Glass Machine 2000

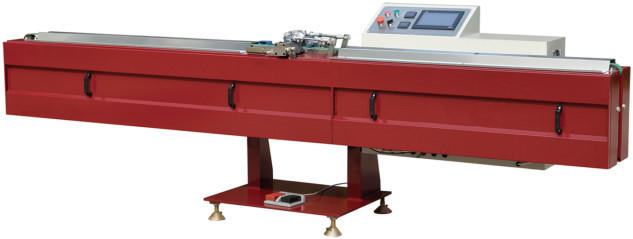

Butyl Coating Machine
Features
l Automatic control of nozzle width in application of pneumatic and hydraulic parallel method
l Possible to control a precise temperature and 1/100 sec interval of sensor perception
l Easily and quickly changeable of spacer width on a consecutive operation
l Available to select a function for curved spacer, to control and operational height and conveyor belt speed(5 step)
l Easily control able of all functions with Touch Screen and PLC program
l Possible to control the length of Butyl application and monitoring current production quantity on Touch Screen
l Even coating on both sides of the frame
l Continuously adjustable working height
Technical Parameters:
| Input Voltage | 380V 50Hz |
| Total Power | 3.75kw |
| Squeeze Pressure | 10～15Mpa |
| Working Speed | 0～35m/min |
| Temperature | 90～150℃ |
| Adjustable Range | 6～18mm |
| Pistons Diameter | ∮200mm |
| Air Pressure | 0.5～0.8Mpa |
| Outside Dimension | 3000×600×950mm |
