| GLASS TYPE: | GLASS WASHING MACHINE | LOW-E GLASS: | AVAILABLE |
|---|---|---|---|
| SOFT ROLLER: | FOR LOW-E GLASS | Cover: | Stainless Steel |
| Water Tank: | Stainless Steel | Blower: | Wind Blower+ Wind Blade Cool Drying System |

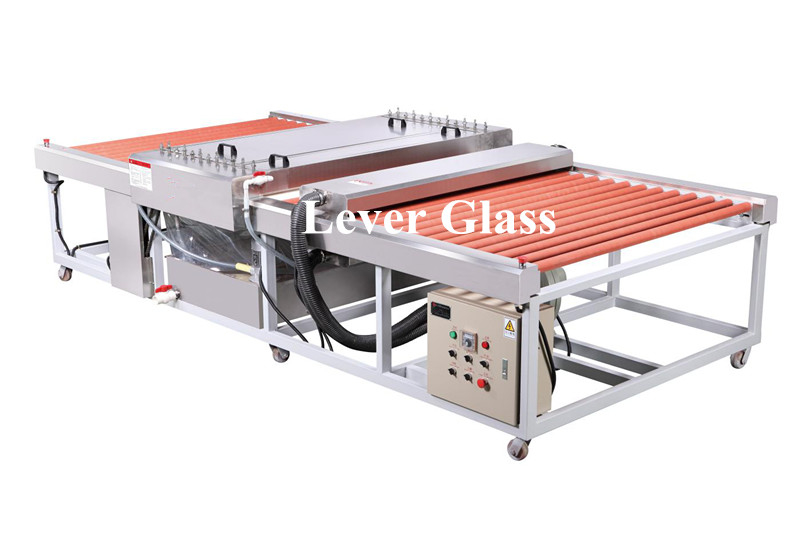

Glass Washing Machine width 2500mm Low-e glass avaiable
1. Brief introduction:
1.1. The working speed is adjustable via step regulator.
1.2. Dry system with strong wind blade which supplies strong cold wind. It have two air knifes.
1.3. The temperature is showed in digital readout.
1.4. The height working section can be adjusted integrally when glass thickness changes.
1.5. The whole cover is made in stainless steel.
2. Specification
| TECHNICAL PARAMETER | |||
| Model | Max. Glass Width | Glass Thickness | Weight |
| LV-QX-1600 | 1600mm | 2-19mm | 900kg |
| Power | Min. Glass Size | Processing speed | Out Dimension |
| 9Kw | 250x250mm | 0.7-3.5m/min | 3800X1950X1020mm |
3. Advanced feature with HIGH QUALITY
(1) Stainless steel cover, stainless steel water tank
(2) Washing section: brush, roller shaft with stainless steel shaft
(3) With wind blower+ wind blade cool drying system
(4) Washing section can be UP& DOWN driven by motor, max.lift height 400mm
(5) Digital display
