LV-DTFB Sereis Double Heating Chamber Flat and Bending Glass Tempering Furnace

China LV-DTFB Sereis Double Heating Chamber Flat and Bending Glass Tempering Furnace supplier
LV-DTFB Sereis Double Heating Chamber Flat and Bending Glass Tempering Furnace supplier LV-DTFB Sereis Double Heating Chamber Flat and Bending Glass Tempering Furnace supplier

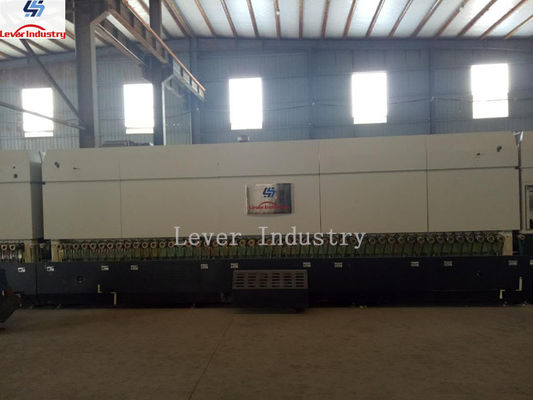

Large Image :  LV-DTFB Sereis Double Heating Chamber Flat and Bending Glass Tempering Furnace

Product Details:

Place of Origin: China
Brand Name: Lever
Certification: CE
Model Number: LV-DTFB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: FOB Qingdao port, USD100000
Packaging Details: seaworthy
Delivery Time: 120days
Payment Terms: T/T,or L/C
Supply Ability: 100 sets per year
Minimum Order Quantity: 1SETS
Contact Now
Detailed Product Description

DTF-SERIES Double Heating Chamber FLAT and BENDING GLASS TEMPERING FURNACE

Model Max. Loading Area Min.Glass Size Thickness Capacity
(mm) (mm) (mm) (Batch/Hour)
LV-DTF2442 2440 x 4200 150 x 280 4~19 30~40 (5mmfor example)
LV-DTF2450 2440 x 5000 150 x 280 4~19 30~40 (5mmfor example)
LV-DTF3060 3000 x 6000 150 x 320 5~19 30~40 (5mmfor example)

1. Machine Application:

For producing flat tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, garden fence, elevator, furniture, etc.



2. Main Technical Features:

. Helix matrix structure for heating oven, which can control the temperature of each area independently.

. Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.

. Fault diagnosis system for the heating elements.

. Advanced & specially designed high-temperature convection fans shall be applied in convection system to eliminate electro-magnetic vibration. And there is no need the water cooling system. Also, it is very easy to make the maintenance and repairment.

. For the force convection fans, If power off, there is small generator providing power to convection fan which could avoid any damage because of high temperature

. PID temperature control,

. Preventive function for the wrong operation

. Synchronous and asynchronous running of each section

. Power monitoring function

. Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.
