|Machine Type:||PVB Film Laminating Line||Autoclave:||Autoclave Required|
|Automatic:||Automatic Loading, Automatic Film Laying Etc||Heating & Vaccum:||With Convection Heating|
|Usage:||Bullet Resistant Glass Laminated Etc|
Flat Glass Laminating Line with PVB film
1. Machine Application
Full Automatic Flat Glass Laminating Line is a special plant used to produce the flat laminated glass, which mainly used in the fields of architecture (doors, windows), bulletproof glass, garden fence, elevator, furniture, etc.
|Model||Max. Loading Area||Min.Glass Length||Glass Thickness||Installation Power|
|LV-FL2030||2000 X 3000||420||4～80||130|
|LV-FL2536||2500 X 3000||420||4～80||175|
|LV-FL2550||2500 X 5000||420||4～80||230|
|LV-FL3060||3000 X 6000||420||4～80|
2. Supply Scope (main parts):
2.1. Automatic Tilting Loading table (One side one station)
2.2. Transition conveyor section I
2.3. Washing & drying machine
2.4. Transition conveyor section II
2.5. PVB film combining section (Three rolls)
2.6. Transition conveyor section III
2.7. IR Pre-heating section
2.8. Pre-pressing section
2.9. IR Heating section
2.10. Pressing section
2.11. Transition conveyor section IV
2.12. Unloading table
2.13. Control system
2.14. Technical documents

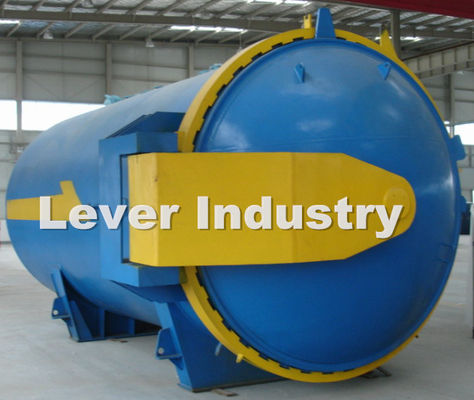

2.16. Ferry and Rails for autoclave
2.17. Air tank for autoclave
2.18. Cooling tower
2.19. Air compressor for autoclave
1. Water used here are automatically circulated and filtered, and the temperature of hot water can be controlled automatically.
2. Key parts in washing section are all of stainless steel, aluminium alloy and nylon materials.
3. Speed of driving system is stepless adjust.
4. Blower is installed in air cabinet with air entry filtrating net, which ensures clean drying air.
5. Low-e glass could be washed
6. The washing water adopts automatic circulation & filtration system, and the temperature of hot water is control automatically.
7. Blower is mounted in the air box with filtering mesh to clean inlet air ensuring cleanness of the drying air.
8. Air heating device make it easier to dry the raw laminated glass sheet after washed.
Lever Industry Co have more than 19 years of experience in the Glass Machine Industry.
