OEM Convection Flat Glass Tempering furnace / Glass toughening Plant

China OEM Convection Flat Glass Tempering furnace / Glass toughening Plant supplier
OEM Convection Flat Glass Tempering furnace / Glass toughening Plant supplier OEM Convection Flat Glass Tempering furnace / Glass toughening Plant supplier OEM Convection Flat Glass Tempering furnace / Glass toughening Plant supplier OEM Convection Flat Glass Tempering furnace / Glass toughening Plant supplier

Large Image :  OEM Convection Flat Glass Tempering furnace / Glass toughening Plant

Product Details:

Place of Origin: China
Brand Name: Lever
Certification: CE
Model Number: LV-TFQ seires

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: seaworthy
Delivery Time: 90 Days
Payment Terms: L/C, T/T
Supply Ability: 200,000 usd
Contact Now
Detailed Product Description
Packaging Details: Seaworthy Or Customized Usage: Glass Tempering Furnace
PLC: Siemens Blower: Taiwan Brand
Ceramice Roller: Vesuvius Brand Glass Toughening Plant: Glass Tempering Furnace

LV-TFQ-SERIES FLAT GLASS TEMPERING FURNACE / GLASS TOUGHENING PLANT

Glass Tempering Machine with top fans convection for Low emissivity coated glass
Video link:
https://youtu.be/tfytuOlcxP4

OEM Convection Flat Glass Tempering furnace / Glass toughening Plant
OEM Convection Flat Glass Tempering furnace / Glass toughening Plant


Popular Machine Models (Or customerized):
ModelMax. Loading AreaMin.Glass SizeThicknessCapacity
(mm)(mm)(mm)(Batch/Hour)
LV-TFQ15251500 x 2500150 x 2803~1915~17(5mmfor example)
LV-TFQ24362440 x 3660150 x 2804~1915~17(5mmfor example)
LV-TFQ24422440 x 4200150 x 2804~1915~17(5mmfor example)
LV-TFQ24502440 x 5000150 x 2804~1915~17(5mmfor example)
LV-TFQ30603000 x 6000150 x 3205~1915~17(5mmfor example)
LV-TFQ33803300 x 8000150 x 3205~1915~17(5mmfor example)


1. Machine Application:

For producing flat tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, household appliance, garden fence, elevator, furniture, and solar energy industries etc.

LV-TFQ Convection Flat Glass Tempering Furnace adopts Top Fans Convection heating technology and it can temper glass with the best quality for architectures and furniture. Glass can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra white glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

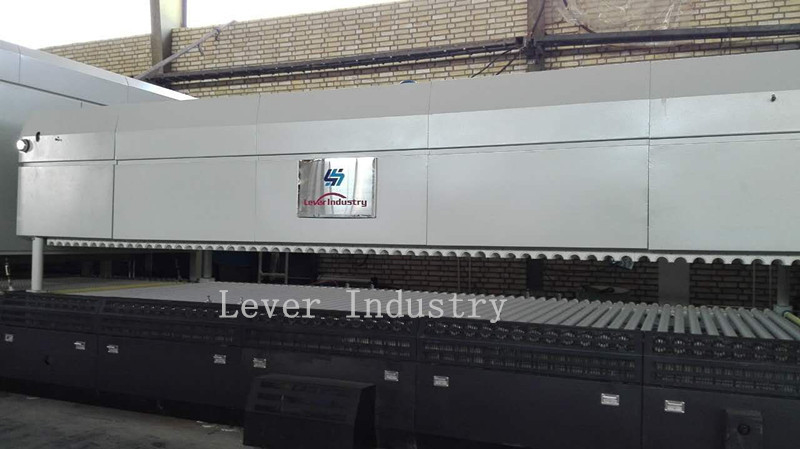

Lever LV-TFQ series Flat Glass Tempering furnace


2. Machine Main Features:

Main technical features:

Lever LV-TFB Series Flat and Bending Glass Tempering Furnace / Glass Tempering Machine
Lever LV-TFB Series Flat and Bending Glass Tempering Furnace / Glass Tempering Machine
OEM Convection Flat Glass Tempering furnace / Glass toughening Plant
2.1. Heating section has a helix matrix structure, which can control the temperature of each area independently. Reasonable design and unique structure of heating elements make a long serve life.
2.2. The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.
2.3. Fault diagnosis system for the heating elements.
2.4. We use only two connecting communication between the thermocouples and computer, which will avoid the interruption and make the temperature-measuring more exact.
2.5. The working condition of every thermocouple could be monitored automatically, and the warning will come out if there is any abnormal situation.
2.6. Adopting PID for temperature control, which has the better anti-interference function and higher temperature-control precision.
2.7. Equal three phase power consumption during automatic heating up period; avoiding phase no-equal during no-heating period automatically.
2.8. The fine-adjustment for oven temperature could be achieved by fine-adjusting the temperature of every heating element.
2.9. During the night, the furnace can stay at sleep mode around 500-550 degrees centigrade and preheating takes place before the start of the shift in the morning so that the furnace is ready for production
2.10. The production process, temperature, time, air pressure, etc could be recorded. Therefore, testing production could be saved and production stability could be improved. Also, the production state in different batches could be tracked.
2.11. The machine has the history record and printing function. When glass come out from the oven, the computer will record the control parameters automatically for reference in future or pint them out.
2.12. Powerful operation prompt facility; if there is any wrong operation or fault, the dialog box will be called out to give you help.

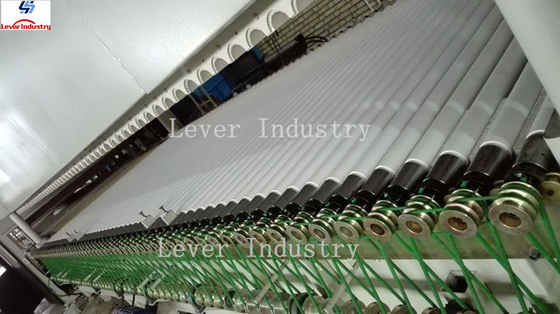

Lever LV-TFQ series Flat Glass Tempering furnace

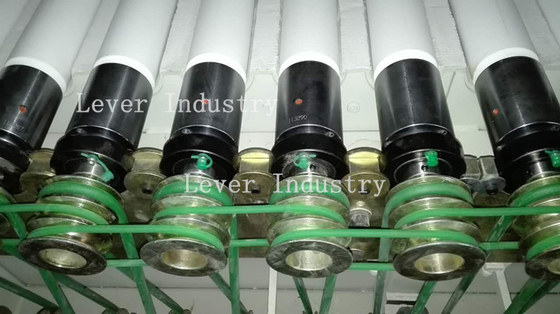

Lever LV-TFQ series Flat Glass Tempering furnace

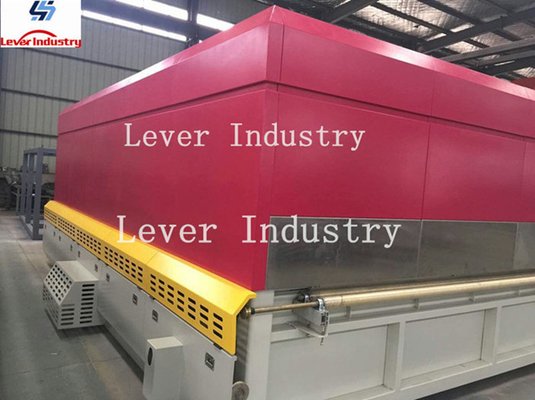

Lever LV-TFQ series Flat Glass Tempering furnace

OEM Convection Flat Glass Tempering furnace / Glass toughening Plant
