Automatic CNC Glass Cutting Line 3725

China Automatic CNC Glass Cutting Line 3725 supplier

Large Image :  Automatic CNC Glass Cutting Line 3725

Product Details:

Place of Origin: CHINA
Brand Name: LEVER
Certification: CE
Model Number: LV-CML 3725 SERIES

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Fob Qingdao Port USD100
Packaging Details: wooden case
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 100sets per year
Contact Now
Detailed Product Description
Machine Type: Glass Cutting Machine

CNC GLASS AUTOMATIC CUTTING LINE

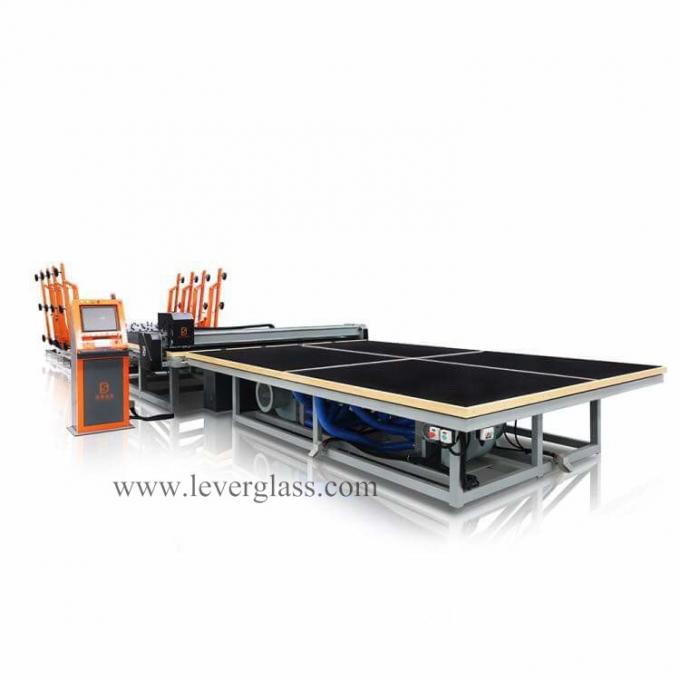

Automatic CNC Glass Cutting Line 3725
The line mainly includes following three sections:

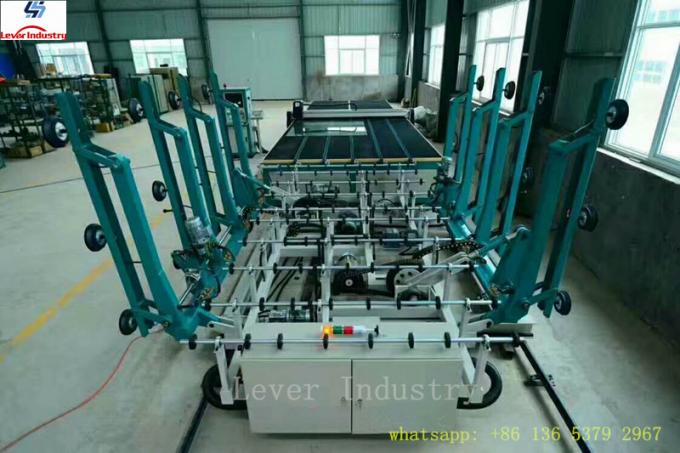

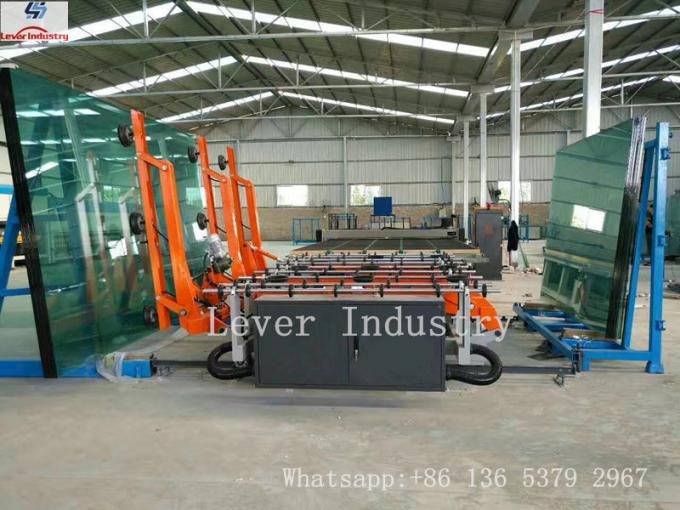

  • 3725 Automatic Glass Loading Table
  • 3725 CNC Automatic Shaped Glass Cutting Machine
  • 3725 Glass Air-float Breaking Table

1. The purpose of the shaped glass cutting machine:
CNC shaped glass cutting machine is mainly used in cars, trains, ships, construction, household appliances, furniture, decoration and other industries. Automatic glass cutting process is characterized by large volume, high quality, strict requirements of size and good interchangeability. If it is taken by manual cutting, the glass size will be dispersion, and by milling to ensure the glass size will result in human waste, and greater equipment wear and tear. However, CNC shaped glass cutting machine can control the glass sheet, utilize the human resources and reduce the equipment wear.
Size will not be required for architectural glass so seriously, but each program is with different shapes, especially the irregular shapes, such as arches, fan-shaped, round, round arc, ellipse and so on. If adopts manual process , the template must be prepared in advance, however, it will cause low efficiency and low repeat utilization of the template, even waste more. The shaped glass cutting machine improves the productivity, reduces cost without the template.
Therefore, the application of CNC shaped glass cutting machine is the inevitable trend during the production of safety glass.

2. Products Characteristics:
2.1. The design is well founded on process and the machine is manufactured in details.
2.2. Excellent man-machine interface: The graph and work state displayed virtually, and easily operated.
2.3. Vast variety of the parameter database: All possible cutting graphs have been stored in the standard figures database provided by the software. So all you need to do before cutting is to modify the parameters.
2.4. Figure drawing: Tools to draw,edit,unit,combine different figures has been provided, and are able to read the figure files in .DXF format made via Auto CAD.

3. Technical parameter:
3.1. Loading machine specifications:

Name Specification
Overall dimension(L*W*H) 4700 X 2900×1460(mm)
Max. Glass size 3725 x 2500mm
Max.glass weight 700KG
Power 7.5KW

3.2. CNC cutting machine specification:

Name Specification
Overall dimension(L*W*H) 4800 X 3250 ×1460(mm)
Max.glass size 3700 x 2500mm
Glass Thickness 2-19mm
Max. speed 160 m/min
Cutting Accuracy ± 0.2 mm
Power 11.5KW

3.3. Air float breaking table specification:

Name Specification
Overall dimension(L*W) 4000×2800(mm)
Qty of breaking parts 1+2pcs
Power 6KW

Automatic CNC Glass Cutting Line 3725Automatic CNC Glass Cutting Line 3725Automatic CNC Glass Cutting Line 3725Automatic CNC Glass Cutting Line 3725
