Customized Min 150x250mm Automobile Glass Bending Machine Fault Diagnosis System

China Customized Min 150x250mm Automobile Glass Bending Machine Fault Diagnosis System supplier

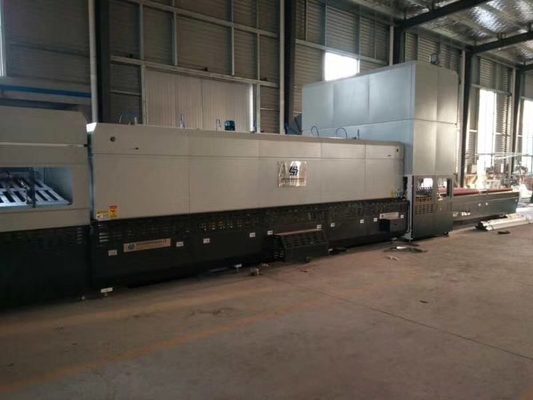

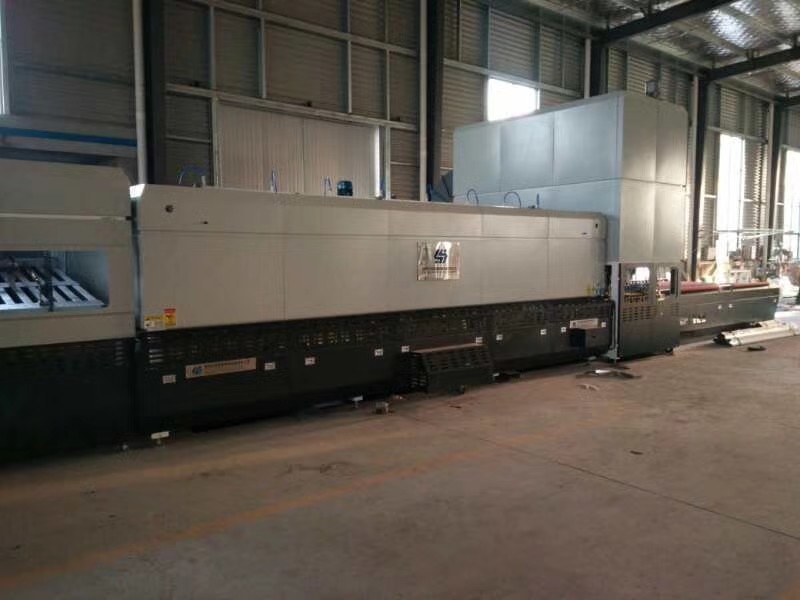

Large Image :  Customized Min 150x250mm Automobile Glass Bending Machine Fault Diagnosis System

Product Details:

Place of Origin: China
Brand Name: Lever
Certification: ce
Model Number: LV-TFB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: plastic film or wooden case
Delivery Time: 120 Days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
PLC: Siemens Blower: Taiwan
Ceramic Roller: Vesuvius Blower Inverter: Siemens Or Schneider
Insulating Material: Isolite

Customized Min 150x250mm Automobile Glass Bending Machine Fault Diagnosis System



Flat & Bend Glass Tempering machine



Machine Main Features:

1. Heating section has a helix matrix structure, which can control the temperature of each area independently. Reasonable design and unique structure of heating elements make a long serve life.

2. The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.

3. Fault diagnosis system for the heating elements.

4. We use only two connecting communication between the thermocouples and computer, which will avoid the interruption and make the temperature-measuring more exact.

5. The working condition of every thermocouple could be monitored automatically, and the warning will come out if there is any abnormal situation.

7. Adopting PID for temperature control, which has the better anti-interference function and higher temperature-control precision.

8. Equal three phase power consumption during automatic heating up period; avoiding phase no-equal during no-heating period automatically.

9. The fine-adjustment for oven temperature could be achieved by fine-adjusting the temperature of every heating element.

10. During the night, the furnace can stay at sleep mode around 500-550 degrees centigrade and preheating takes place before the start of the shift in the morning so that the furnace is ready for production

11. The production process, temperature, time, air pressure, etc could be recorded. Therefore, testing production could be saved and production stability could be improved. Also, the production state in different batches could be tracked.

12. The machine has the history record and printing function. When glass come out from the oven, the computer will record the control parameters automatically for reference in future or pint them out.

13. Powerful operation prompt facility; if there is any wrong operation or fault, the dialog box will be called out to give you help.





TBL-SERIES BI-DIRECTION FLAT & BEND GLASS TEMPERING FURNACE (RIGID SHAFT BENDING)



Model Max. Loading Area Min.Glass Size Thickness Min.Radius
(mm) (mm) (mm) (mm)
LV-TFB1206L 1200 x ⌒600 150 x 280 3~19 ≧350
LV-TFB1608L 1200 x ⌒800 150 x 280 4~19 ≧450
LV-TFB2010L 2010 x ⌒1000 150 x 280 4~19 ≧500
LV-TFB2412L 2440 x ⌒1200 150 x 280 4~19 ≧550
LV-TFB2415L 2440 x ⌒1500 150 x 320 5~19 ≧700
LV-TFB3025L 3000 x ⌒2500 150 x 320 5~19

≧1200
