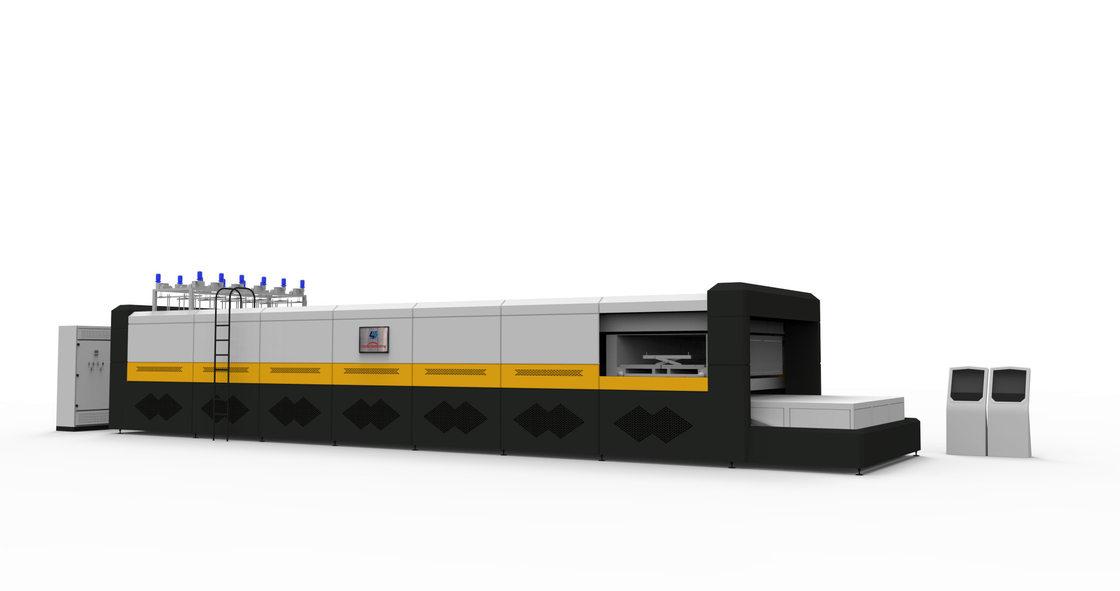

LV-BL Series Thermal Bending Furnace Windshield Glass
1. Machine Application:
Continuous Thermal Bending Furnace is a special plant used to produce the laminated windshield for the car or bus.
It is the first processing machine in the whole windshield production line.
The glass produced by this machine is the thermal bent glass.
2. Supply Scope:
2.1. Loading system
2.2. Pre-heating chamber(s)
2.3. Heating chamber(s)
2.4. Pre-forming chamber(s)
2.5. Forming chamber(s)
2.6. Annealing chamber(s)
2.7. Cooling chamber(s)
2.8. Unloading system
2.9. Electrical & control system
2.10. Technical documents
3. Machine Main Features:
3.1. The whole process is controlled and monitored by computer.
3.2. Key control elements are from world famous company (such as Siemens, Omron, ABB etc.) to insure reliable performance,
3.3. The monitoring system which object the glass status in forming area can ensure low labor intensive and good working environment.
3.4. Different type of glass can be loaded in different wagon. Computer control system identifies wagons automatically and bends glass according to pre-setp.
3.5. Each heating unit in the forming zone can be controlled individually, which ensure flexible heating. The forming process can be interfered manually.
3.6. Powerful software package, comfortable man-machine interface, complete self-check system insure stable and reliable running. And the parameters can be changed on-line.
3.7. The annealing section guarantees the performance of the products, the exhaust device of the cooling layer can accelerate the cooling speed and improve the efficiency.
3.8. Conveyors are equipped with proximity switch, which ensures accurately and reliably running.
3.9. The wagon is of tank structure can insure lower heating consumption. The observe windows are Quartz glass, which resist higher temperature and damage.
3.10. It is easy to make moulds with the lower cost.
1500 x 800mm
1500 x 900mm
1600 x 900mm
2000 x 1000mm
2200 X 1200MM
Automotive windshield glass
Lever Industry Co have more than 19 years of experience in the Glass Machine Industry.
We are Unremitting, Just for Customer Satisfication!
