LV-TFQ Series Top Convection Glass Tempering Furnace

China LV-TFQ Series Top Convection Glass Tempering Furnace supplier

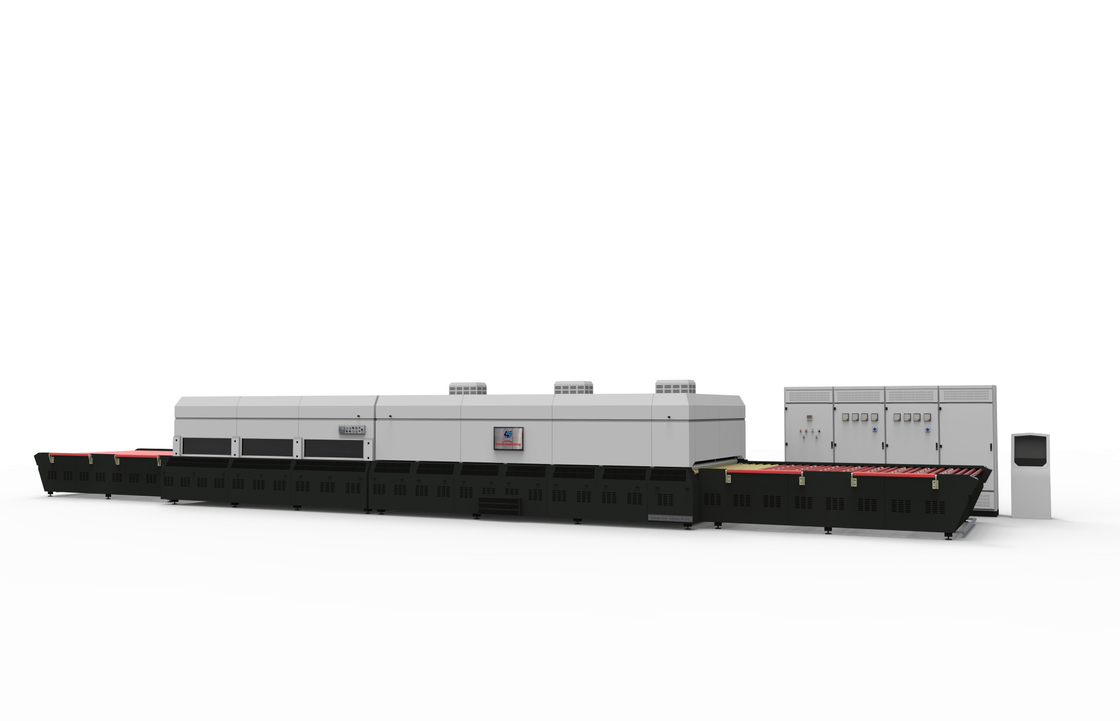

Large Image :  LV-TFQ Series Top Convection Glass Tempering Furnace

Product Details:

Place of Origin: China
Brand Name: Lever
Certification: CE
Model Number: LV- TFQ Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 200000
Packaging Details: seaworthy
Delivery Time: 120 Days
Payment Terms: L/C, or T/T
Supply Ability: 12 SETS PER MONTH
Minimum Order Quantity: 1 SET
Detailed Product Description
Glass Toughening Machine: Glass Tempering Furnace Glass Toughened Oven: Glass Toughened Machine
Glass Oven: Toughened Glass Furnace

Top Convection Flat Glass Tempering Machine / Flat Glass Tempering Furnace for low-e coated glass

Video Link:

https://youtu.be/tfytuOlcxP4



LV-TFQ Top Fans Convection Flat Glass Tempering Furnace can temper glass with the best quality for architectures and furniture. Glass can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra white glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

Model Max. Loading Area Min.Glass Size Thickness Capacity
(mm) (mm) (mm) (Batch/Hour)
LV-TFQ1525 1500 x 2500 150 x 280 3~19 15~17(5mmfor example)
LV-TFQ2436 2440 x 3660 150 x 280 4~19 15~17(5mmfor example)
LV-TFQ2442 2440 x 4200 150 x 280 4~19 15~17(5mmfor example)
LV-TFQ2450 2440 x 5000 150 x 280 4~19 15~17(5mmfor example)
LV-TFQ3060 3000 x 6000 150 x 320 5~19 15~17(5mmfor example)
LV-TFQ3380 3300 x 8000 150 x 320 5~19 15~17(5mmfor example)

Machine Main Features:

. Heating section has a helix matrix structure, which can control the temperature of each area independently. Reasonable design and unique structure of heating elements make a long serve life.

. The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.

. Fault diagnosis system for the heating elements.

. We use only two connecting communication between the thermocouples and computer, which will avoid the interruption and make the temperature-mearsuring more exact.

. The working condition of every thermocouple could be monitored automatically, and the warning will come out if there is any abnormal situation.

. Advanced & specially designed high-temperature convection fans shall be applied in convection system to eliminate electro-magnetic vibration. And there is no need the water cooling system. Also, it is very easy to make the maintenance and repair-ment.

. Adopting PID for temperature control, which has the better anti-interference function and higher temperature-control precision.

. Equal three phase power consumption during automatic heating up period; avoiding phase no-equal during no-heating period automatically.

. The fine-adjustment for oven temperature could be achieved by fine-adjusting the temperature of every heating element.

. During the night, the furnace can stay at sleep mode around 500-550 degrees celcius and preheating takes place before the start of the shift in the morning so that the furnace is ready for production

. The production process, temperature, time, air pressure, etc could be recorded. Therefore, testing production could be saved and production stability could be improved. Also, the production state in different batches could be tracked.

. The machine has the history record and printing function. When glass come out from the oven, the computer will record the control parameters automatically for reference in future or pint them out.

. Powerful operation prompt facility; if there is any wrong operation or fault, the dialog box will be called out to give you help.

. Preventive function for the wrong operation. The data which affects the system running has been restricted strictly. The different operator has the different access right to system setting.

. Power monitoring function, the monitoring program could monitor most of the sensors.

LV-TFQ Series Top Convection Glass Tempering FurnaceLV-TFQ Series Top Convection Glass Tempering FurnaceLV-TFQ Series Top Convection Glass Tempering FurnaceLV-TFQ Series Top Convection Glass Tempering FurnaceLV-TFQ Series Top Convection Glass Tempering FurnaceLV-TFQ Series Top Convection Glass Tempering Furnace
